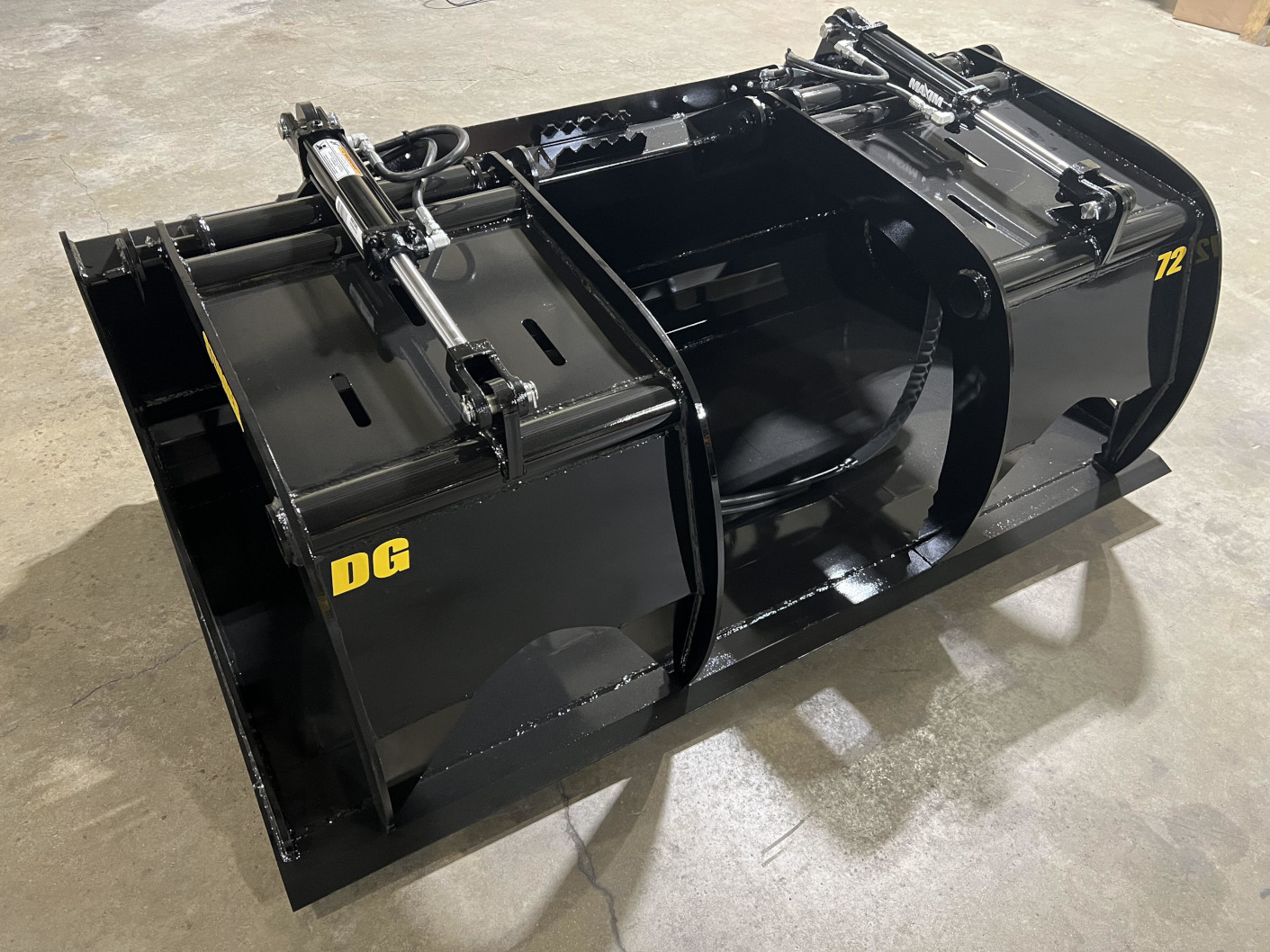

Stinger Demolition Grapple Bucket

Stinger Attachments’ DG Series demolition grapple bucket is the perfect skid steer attachment to meet a wide range of customer needs. The demolition/scrap grapple uses the design of a solid bottom bucket with sleek curved end plates and two heavy-duty grapples. The solid bottom bucket lets the operator keep the desired material in the bucket, and the curved side plates allow the operator to clamp onto large objects that are wider than the bucket, like logs and scrap.

Features

• Fully constructed with grade 50 steel.
• 3/16” shell.
• 4”x4” reinforcement tube on top.
• 3/8” side plates.
• ¾”x6 cut edge welded to ½”x5”.
• Optional bolt-on cut edge per customer request.
• 4 – 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.
• 3/16″ rolled insert for added strength and better clean out.
• 30” bucket depth for greater capacity and an unobstructed view of the cut edge.
• 75-degree back angle.
• Two Grapples constructed of 3/8” and ¼” steel to hold up to the toughest working conditions.
• Grapple brackets are fully welded to the 4”x4” square tube.
• Greaseable 1” pins.
