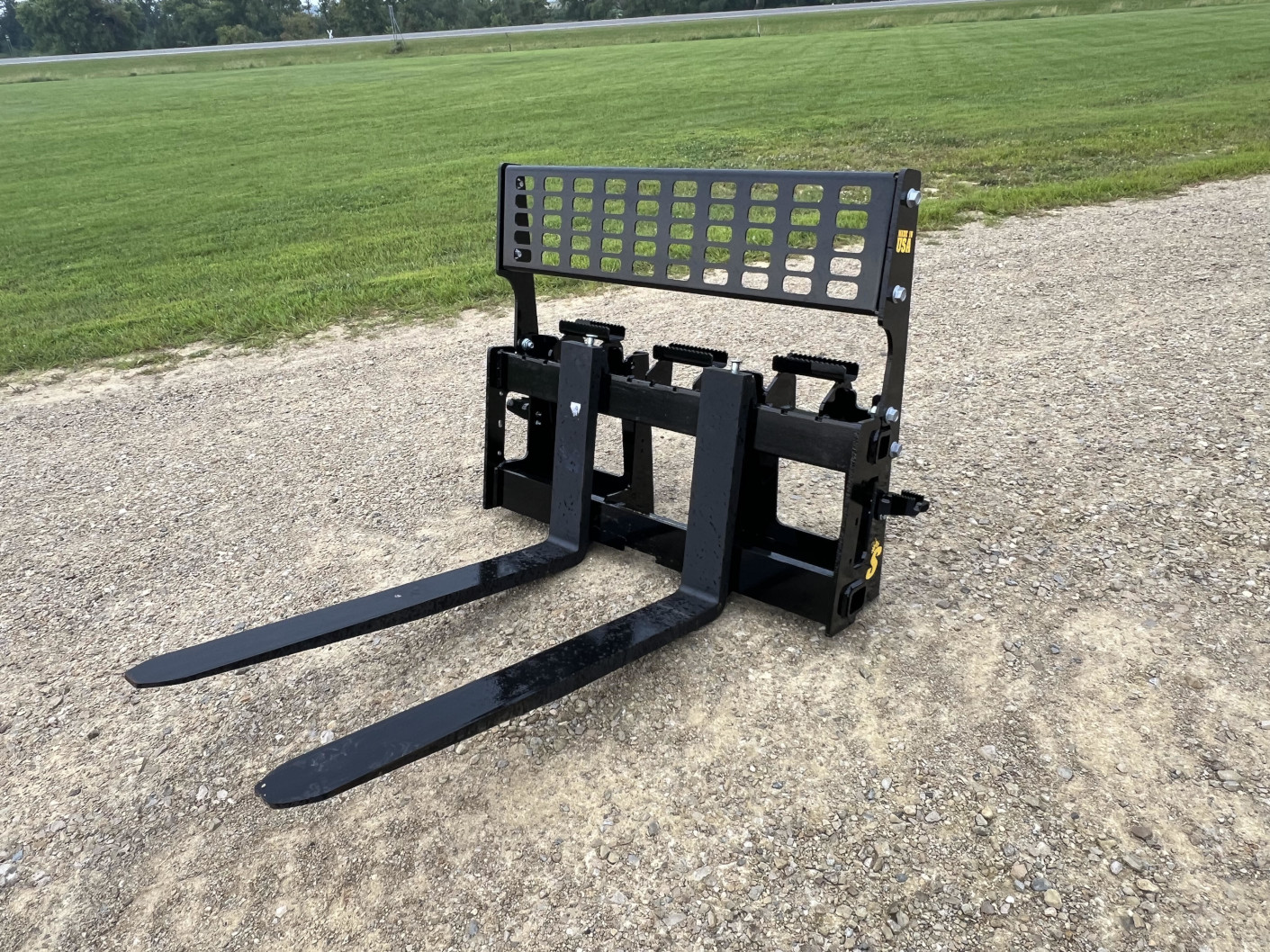

Stinger Class 3 Pallet Forks

The Stinger Attachments Class 3 Pallet Forks are a heavy duty modular design for use on high horsepower skid steers, utility tractors, and mid-sized payloaders. Our frame design features a heavy-duty machined 1.5” x 4.5” top carrier bar. This top bar is welded to a 3” x 3” heavy 3/8” wall structural tube to make the top support even stronger. The bottom carrier is a ½” x 3” flat welded to a 3” x 4” heavy 3/8” wall support tube. Our skid steer loader pallet forks are manufactured in a jig fixture by man to ensure high tolerances are met. Our high tolerances are important because this allows the fork to slide easily. Our forks also feature structural steel materials that you can find used in industrial construction and equipment because of their superior strength. We use industry-leading USA forks by Cascade Corp. They are backed by a 2-year frame and 3-year fork warranty.

Specifications

• 1.5” x 4.5” Top Rail
• 3” x 3” Heavy 3/8” Wall Top Tube
• 3” x 4” Heavy 3/8” Wall Bottom Tube
• Total Height: 45”
• Total Approx. Base Weight Standard: 550 lbs
• Total Approx. Base Weight Hydraulic: 600 lbs
• 3-Year Fork Warranty
• 2-Year Frame Warranty
• Walk-thru or Solid Back Frame
