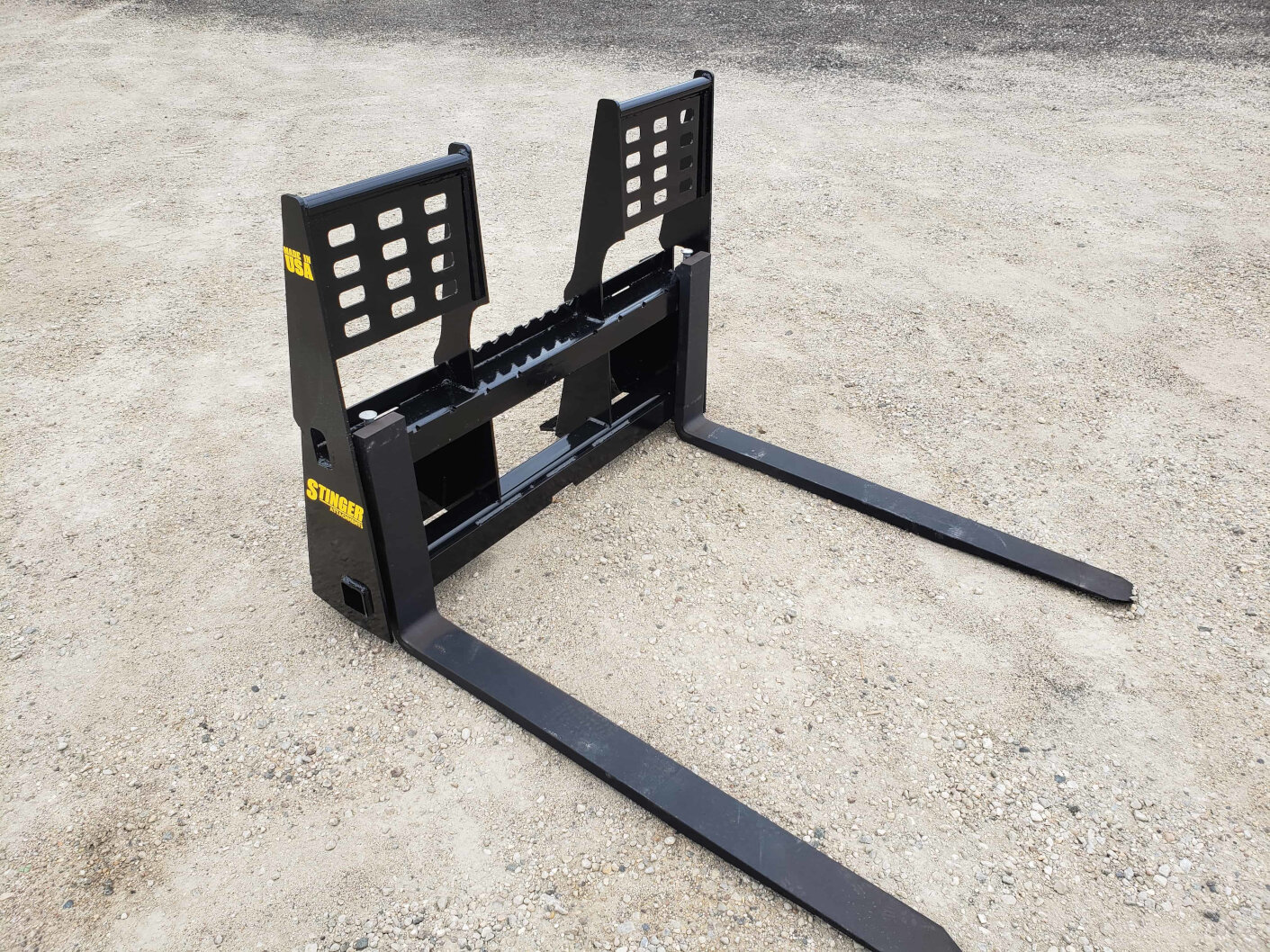

Stinger Class 2 Pallet Forks

The Stinger Attachments pallet forks are designed for heavy-duty use. We use industry-leading USA forks by Cascade Corp. They are backed by a 3-year warranty. Our frame design features a heavy-duty machined 1.25” x 3” top carrier bar — this top bar is then welded to a 3” x 2” structural tube to make the top support even stronger. The bottom carrier is a ½” x 3” flat welded to a 3” x 3” support tube. Our main carriage uprights are constructed of 3/8” grade 50 steel. Our skid steer loader pallet forks are manufactured in a jig fixture by man to ensure high tolerances. Our high tolerances are important because this allows the fork to slide easily.

Specifications

• Fork Options: (48″ Long) 4000 or 5500lbs (60″ Long) 5500lbs
• Fork Length: 48”
• Carriage Width: 48”
• Total Height: 39”
• Total Weight: 470 lbs
• 3-Year Fork Warranty
• 1-Year Frame Warranty
• Walk-thru standard
• 1.25×3” top machined carrier bar
