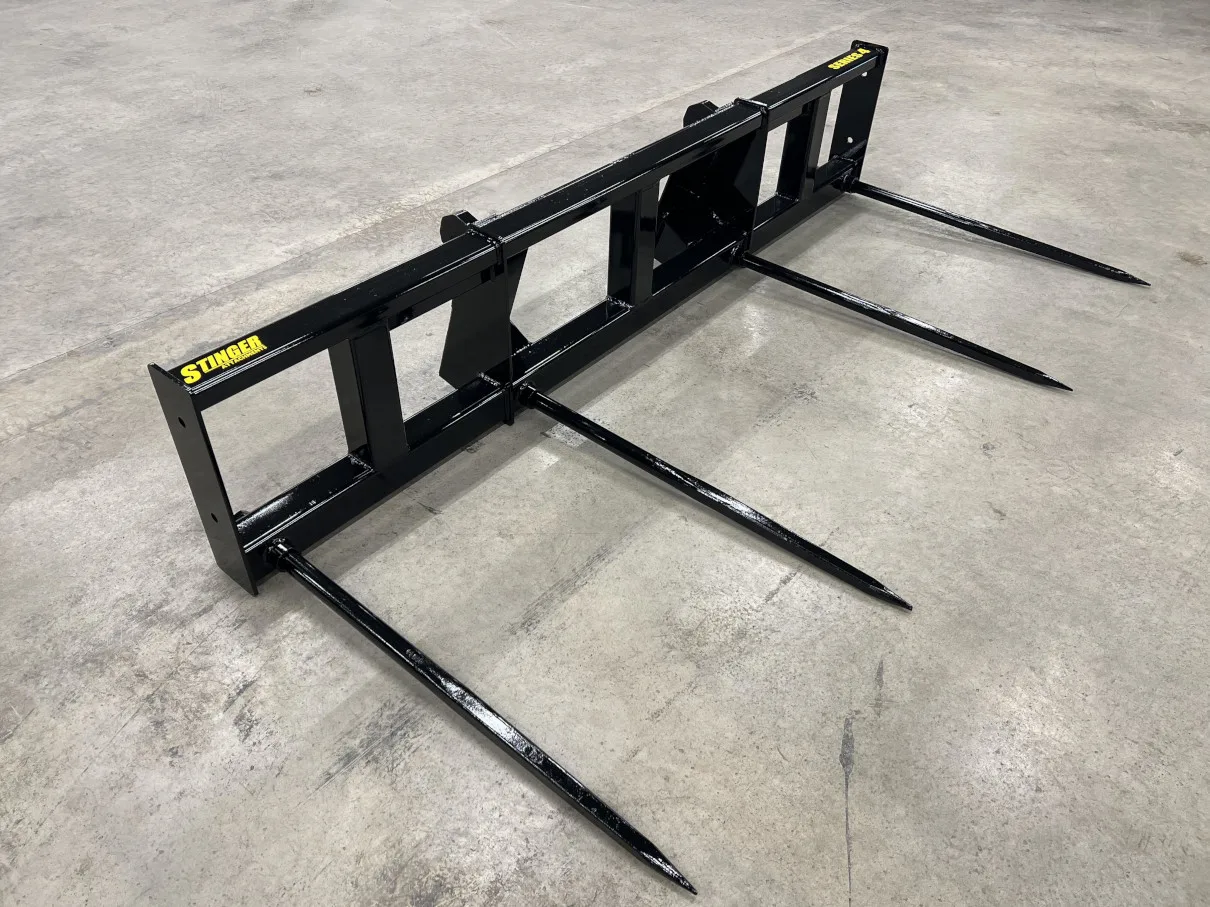

Stinger Bale Spear Series 4 XD Double Large Round Bale Mover

The Stinger Attachments Series 4 Bale Mover is intended to utilize wheel loaders and telehandlers to move large numbers of round bales in minimal time. It features an outer tine spacing of 100” with a 30”/40”/30” configuration for moving large round bales up to 6’ in diameter. For moving hay from a field, loading or unloading a trailer, or into or out of a barn fast, this large round baler mover will help get the job done. The Series 4 100″ Bale Mover is offered with many ISO agricultural or construction mounts.

Specs & Features

• 4x2x5/16” Top Support tube
• 4x4x3/8” Bottom Tube
• 1/2” Gr 50 Sides plates
• Replaceable tines (Double Nut)
• 3500 lbs @ 30″ Spear capacity
• Safety Step

Options

• Bolt-on Supports
• 39”, 43” or 49” Spears (33”-43” Usable length)
• Multiple Mount Offerings

Series 4 Wheel Loader and Telehandler Bale Spear Features

This high-performing bale spear offers a four-tine design and a 14,000-pound capacity to keep your operations moving. The 61-inch distance between the outer tines can easily accommodate two large square bales. The optional bolt-on side supports provide extra stability for these heavier, bulkier loads.

Do you routinely work with different-sized bales? The availability of multiple tine lengths enables you to find the best solution for your applications — select from 39-inch, 43-inch or 49-inch options. The tines are replaceable, allowing you to make fast changes when needed.

Other valuable features include a built-in hookup you can modify to fit any tractor in your fleet. This intuitive design ensures your bale spear will fit correctly and securely on your machine. A safety step reduces the likelihood of workplace accidents while using the attachment.

The Series 4 tractor bale spear includes a two-year Stinger Attachments warranty against defects in the material or workmanship.
