Stinger Bale Spear Series 4
Get a Quote
Or give us a call at 815 383 7154.

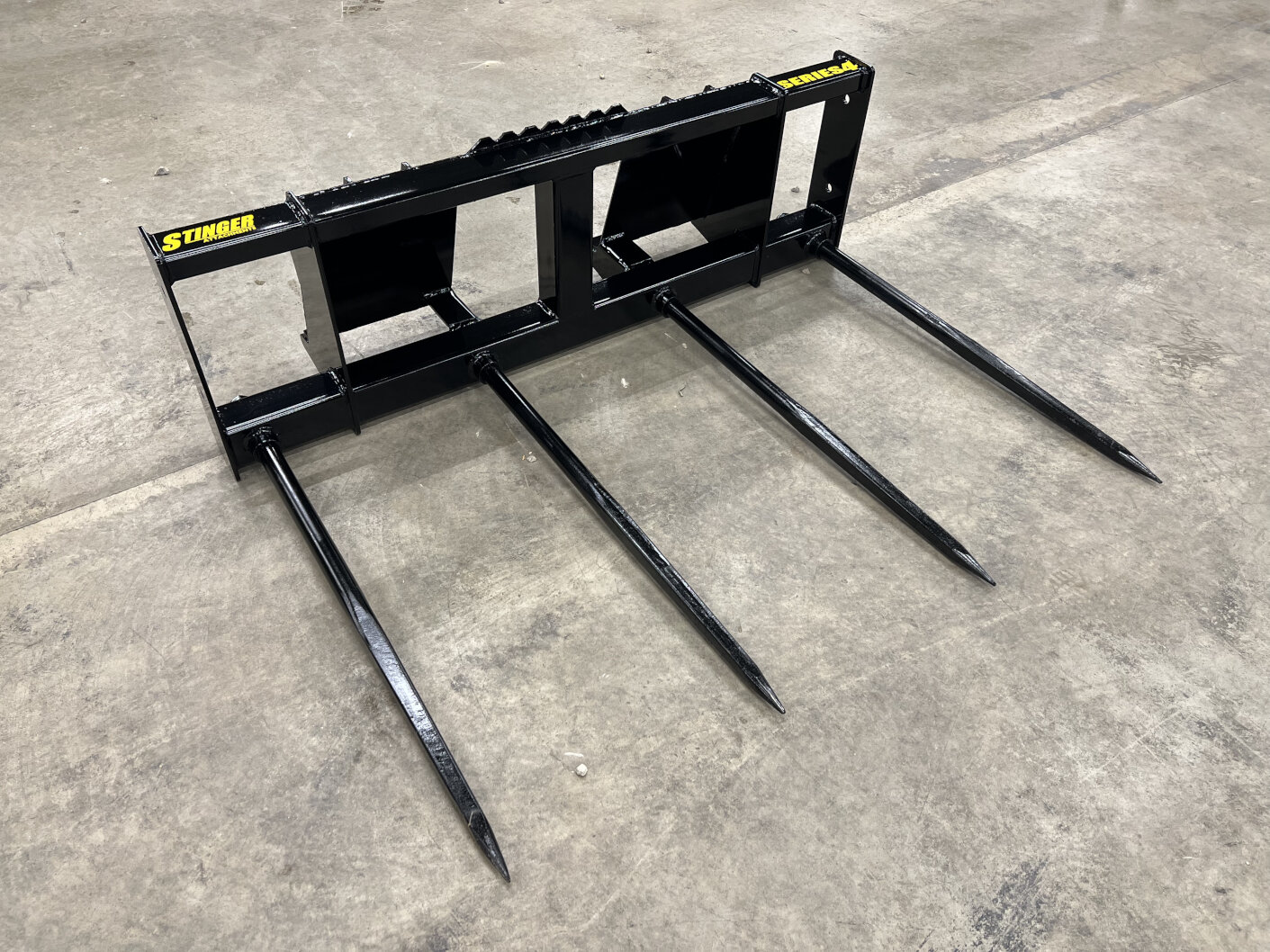

The Stinger Attachments Series 4 bale spear is a perfect piece of equipment for any large agriculture producer moving large square bales two at a time. Its four-tine design provides 14,000 pounds of carry capacity. Each of the four tines is replaceable. The outermost tines are placed 61 inches apart, flanking two additional tines placed evenly between them. This can be purchased with the optional bolt on bale support (only available for 61″) allowing you to safely carry 2 large bales at once. The design is available with multiple tine lengths, including 39 inches, 43 inches, or 49 inches.
Specifications
- 351-pound (43-inch) spears
- 70-degree back angle
- 4-by-2-by-1/4-inch Top Support tube
- 4-by-4-by-1/4-inch Bottom Tube
- 3/8-inch Gr 50 Sides plates
Features
- Skid-Steer Hookup (Can Modify to fit any machine)
- 39-inch Spear useable length: (33 inches)
- 43-inch Spear useable length: (37 inches)
- 49-inch Spear useable length: (43.5 inches)
- Replaceable tines (Double Nut)
- Safety Step
- Optional (Bolt-on Side Supports for two bales)
